Part Number: 87520062
Description: International Power Cord 32A Single Phase, 2P 3W
NOTE: This is an Obsolete Part

Specifications

(Specifications subject to change without notice)

Part Number: 87520062
Current Rating: 32A
Voltage Rating: 200-250VAC
Length: 2.5m
Temperature Rating: -25ºC to 60ºC
Ingress Protection Rating: IP44 Conn Only
Phase: Single Phase
Hour Designation: 6
Housing Color: Blue/Black

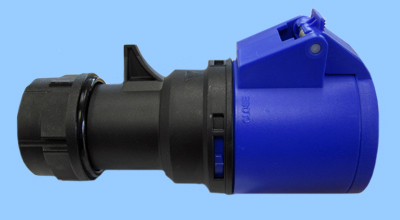

Connector Type: IEC 60309
Connector Part Number: 84332204
Jacket Strip: 50mm
Conductor Strip: 10mm
Cable Style: Int'l
Cable Size: 3x4.0mm²
Cond. Color Code: Brown,Blue,Green/Yellow
Cable Type: H07RNF
Cable Color: Black
Cable Material: Rubber
Cable Standard: EN 50525
Approx. Stranding: 56/0.30mm
Approx. Outer Diameter: 12.7 to 16.2mm
CE Marking: yes
REMARKS:

Last Modification: 06/26/17 • 11:40:11 • netui           *Specifications subject to change without notice

Printer Friendly
Printable version of Specifications

** Please select your country for pricing and availability **

Document Center

Drawings Approvals Environmental Misc.

AutoCAD (.dwg)

Adobe Acrobat PDF (.pdf)

Plug

Connector




Click to email approval documents

Designer Notes

Related Items


84432224 - 32/30A 6 Hour Inlet Blue/Black, 2P 3W, IP44


84432225 - 32/30A 6 Hour Inlet Blue, 2P 3W, IP44


85820160 - Strain Relief Liquid Tight Flex


85820560 - Liquid Tight Strain Relief with Dome Nut
