Part Number: 88010201

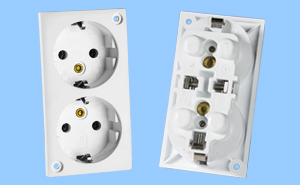

Description: Continental European Duplex Socket White
Specifications

(Specifications subject to change without notice)

Part Number: 88010201
Current Rating: 16A
Voltage Rating: 250VAC
Temperature Rating: See Remarks
Flammability Rating: 850 C Glow wire
Ingress Protection Rating: IP 20
Phase: Single Phase
Class: Class I
Number of Contacts: 3
Contact Material: Berylium Copper
Plug/Socket Type: CEE 7/3
Plug/Socket Standard: DIN 49440-1
Plug/Socket Color: White
Cable Selection: 3 wire
Cable Size: 2.5mm²
General Material: PBT
CE Marking: no
REMARKS: Ambient temperature range: -5ºC to +35ºC. Allowable temp. rise during use is +45ºC. Operational temp. range is -5ºC to +80º

Last Modification: 04/10/18 • 13:03:12 • netui           *Specifications subject to change without notice

Printer Friendly
Printable version of Specifications

** Please select your country for pricing and availability **

Document Center

Drawings Approvals Environmental Misc.

AutoCAD (.dwg)

Adobe Acrobat PDF (.pdf)

ISO-10303 STEP Product Data (.step)

3D ACIS Model (.sat)

Adobe Acrobat 3D (.pdf)



Click to email approval documents

Certificate of Compliance
Wiring Instructions
Designer Notes
