Part Number: 88010512

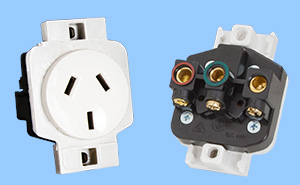

Description: 10A/250V White Australian Socket
Specifications

(Specifications subject to change without notice)

Part Number: 88010512
Current Rating: 10A
Voltage Rating: 250VAC
Temperature Rating: 113ºC
Flammability Rating: 750ºC Glow wire
Ingress Protection Rating: IP X3
Phase: Single Phase
Class: Class I
Number of Contacts: 3
Contact Material: Nickel-plated brass
Plug/Socket Type: 10A
Plug/Socket Standard: AS/NZS 3112
Plug/Socket Color: White
Cable Selection: 3 wire
Cable Size: 2.5mm²
General Material: Thermoplastic
CE Marking: no
REMARKS:

Last Modification: 10/06/17 • 08:53:54 • netui           *Specifications subject to change without notice

Printer Friendly
Printable version of Specifications

** Please select your country for pricing and availability **

Document Center

Drawings Approvals Environmental Misc.

AutoCAD (.dwg)

Adobe Acrobat PDF (.pdf)



Click to email approval documents

Wiring Instructions
Designer Notes
