Part Number: 88011082

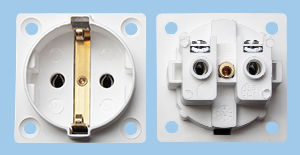

Description: Continental European Panel Mount Receptacle
Specifications

(Specifications subject to change without notice)

Part Number: 88011082
Current Rating: 16A
Voltage Rating: 250VAC
Temperature Rating: Max. Amb. 35ºC
Flammability Rating: 750ºC Glow wire
Ingress Protection Rating: IP 20
Phase: Single Phase
Class: Class I
Number of Contacts: 3
Contact Material: Nickel-plated brass
Plug/Socket Type: CEE 7/3
Plug/Socket Standard: DIN 49440
Plug/Socket Color: White
Cable Selection: 3 wire
Cable Size: 1.0mm² to 2.5mm²
General Material: Thermoplastic
CE Marking: no
REMARKS: Ambient temp. range: -5ºC to +35ºC. Allowable heat rise during use is +45ºC. Operational temp. range is -5ºC to +80º Ground strap is only Brass material.

Last Modification: 02/02/21 • 07:51:55 • netui           *Specifications subject to change without notice
