Part Number: 88052000

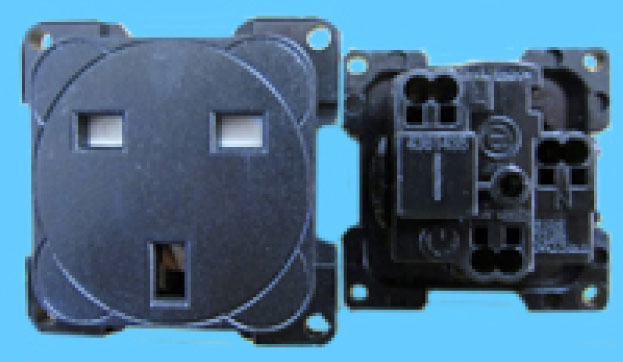

Description: United Kingdom Black 13A/250V Socket
Specifications

(Specifications subject to change without notice)

Part Number: 88052000
Current Rating: 13A
Voltage Rating: 250VAC
Temperature Rating: -5ºC to 40ºC
Flammability Rating: UL 94 V-2
Phase: Single Phase
Class: Class I
Number of Contacts: 3
Contact Material: Brass
Plug/Socket Type: BS 1363-2
Plug/Socket Standard: BS 1363-2 BS 5733
Plug/Socket Color: Black
Cable Selection: 3 wire
Cable Size: 4.0mm²
General Material: Perlex R5563
CE Marking: no
REMARKS: Socket can be mounted on the front or rear of panel. Temperature rating is ambient,with value over 24h not to exceed 25ºC. Temp. rise of 52ºC max. at the terminals.

Last Modification: 08/08/19 • 11:21:04 • netui           *Specifications subject to change without notice

Printer Friendly
Printable version of Specifications

** Please select your country for pricing and availability **

Document Center

Drawings Approvals Environmental Misc.

AutoCAD (.dwg)

Adobe Acrobat PDF (.pdf)

ISO-10303 STEP Product Data (.step)



Click to email approval documents

Wiring Instructions
Designer Notes
