Part Number: 88052021

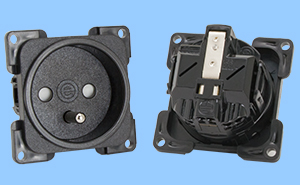

Description: French/Belgian Black 16A/250VAC Socket
Specifications

(Specifications subject to change without notice)

Part Number: 88052021
Current Rating: 16A
Voltage Rating: 250VAC
Temperature Rating: Max. Amb. 35ºC
Flammability Rating: UL 94 V-O
Phase: Single Phase
Class: Class I
Number of Contacts: 3
Contact Material: Nickel-plated brass
Plug/Socket Type: CEE 7/5
Plug/Socket Standard: NFC 61.314
Plug/Socket Color: Black
Cable Selection: 3 wire
Cable Size: 2.5mm² max
General Material: See Remarks
CE Marking: no
REMARKS: Front and rear panel mount. Temp. per VDE normal house-hold; 25 to 35 degrees C for a short time. Resins:Perlex R5563

Last Modification: 07/26/18 • 08:36:57 • netui           *Specifications subject to change without notice

Printer Friendly
Printable version of Specifications

** Please select your country for pricing and availability **

Document Center

Drawings Approvals Environmental Misc.

AutoCAD (.dwg)

Adobe Acrobat PDF (.pdf)

ISO-10303 STEP Product Data (.step)

SolidWorks 3D (vector graphics) (.sldprt)

3D ACIS Model (.sat)

International Graphics Exchange Standard File Format (.igs)



Click to email approval documents

Wiring Instructions
Designer Notes
