Specifications
(Specifications
subject to change without notice)
|

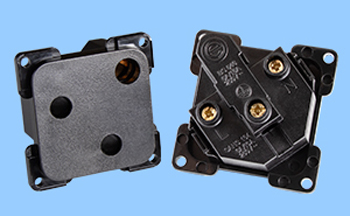

Part Number: 88052170 |
Current Rating: 15A |
Voltage Rating: 250VAC |
Temperature Rating: Max. Amb. 35ºC |
Flammability Rating: UL 94 V-0 |
Phase: Single Phase |
Class: Class I |
Number of Contacts: 3 |
Contact Material: Phosphor Bronze |
Plug/Socket Type: BS 546/SANS 164 |
Plug/Socket Standard: SANS 164 |
Plug/Socket Color: Black |
Cable Selection: 3 wire |
Cable Size: 4.0mm² |
General Material: Polycarbonate |
CE Marking: no |
|
REMARKS: Max. allowed temperature rise: 45ºC. Operating temperature range -15ºC to 80ºC. |
Last
Modification:
11/08/21 • 14:55:48 • netui *Specifications subject to change without notice |
|
![Printer Friendly](/ic/images/icon_printer.gif) Printable version of Specifications
|
