Featured Product

Country-Specific Socket Strips

A socket strip distributes electrical power through multiple sockets. It is used to provide multiple sources of power (sockets) in an application with limited socket (outlet) access.

Socket strips are also known by other names: RPT (relocatable power taps), power strips, power bars, power distribution units, or power boards.

Interpower carries socket strips for six different country-specific plug patterns in the following countries or regions: Australia, Continental Europe, France/Belgium, North America, and United Kingdom.

See the complete line of country-specific socket strips available at Interpower.

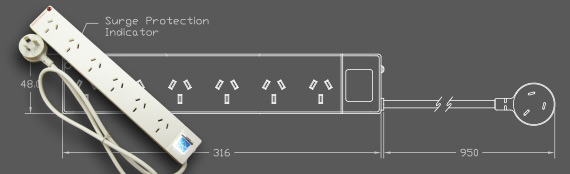

Australian Socket Strip:

Interpower part number: 85010051

Features:

  • Number of sockets—6
  • Socket type —AS/NZS 3112
  • Cable plug type—AS/NZS 3112
  • Case enclosure material—Plastic
  • Case enclosure color—White
  • Mounting style—Table-mount
  • Current and Voltage Ratings—10A/230–240VAC
  • Approval—Queensland Government
  • Circuit breaker—10A/250V thermal, resettable
  • Note: This has surge protection, but is not a lightning arrestor

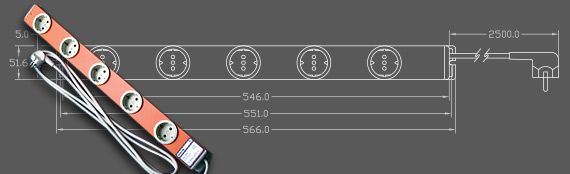

Continental European Socket Strips

Interpower part numbers: 85023050, 85023090, 85013041, 85003040, 85003080, 85003120

Features:

  • Number of sockets—4, 5, 8, 9 or 12
  • Socket type —CEE 7
  • Cable plug type—CEE 7/7
  • Case enclosure material—Metal
  • Case enclosure colors—Orange or gray
  • Mounting style—Table-mount
  • Current and Voltage Ratings—16A; 100–240VAC, 240VAC, or 250VAC (see individual socket strips for specific ratings)
  • Approvals— vde
  • Circuit breaker choices (for select socket strips)—Circuit breaker or rocker switch
  • CE marking CE
  • RoHS compliant

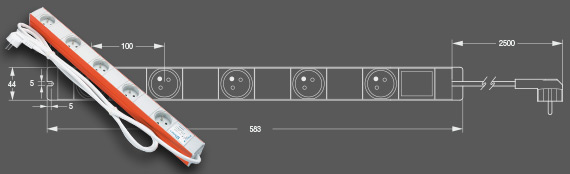

French/Belgian Socket Strip

Interpower part number: 85032052

Features:

  • Number of sockets—5
  • Socket type —French/Belgian
  • Cable plug type—CEE 7/7
  • Case enclosure material—Metal/plastic
  • Case enclosure colors—Orange/white
  • Mounting style—Table-mount
  • Current and Voltage Ratings—16A/100–240VAC
  • Approvals— vde
  • CE marking CE
  • RoHS compliant

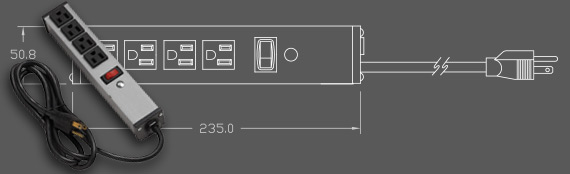

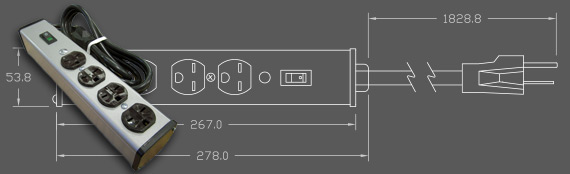

North American Socket Strips

Interpower part numbers—85010360, 85010250, 85010200, 85010221, 85010231

NEMA 5-15


NEMA 6-15

Possible Features (please see individual socket strips for specific details):

  • Number of sockets—4 or 6
  • Socket types —NEMA 5-15R or NEMA 6-15R
  • Cable plug type—NEMA 5-15P or NEMA 6-15P
  • Case enclosure material—Aluminum/plastic or aluminum
  • Case enclosure colors—Silver, gray, or black
  • Mounting style—Table-mount, panel or wall-mount, rack-mount, or table with clips
  • Current and Voltage Ratings—15A; 120VAC, 125VAC, or 250VAC  (see individual socket strips for specific ratings)
  • Approvals (for select socket strips)—   or
  • Circuit breaker choices (for select socket strips)—Lighted switch or circuit breaker and/or rocker switch

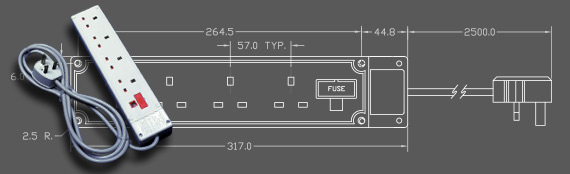

United Kingdom Socket Strips

Interpower part numbers: 85010322, 85031054

Possible features (please see individual socket strips for specific details):

  • Number of sockets—4 or 5
  • Socket type —BS 1363
  • Cable plug type—BS 1363
  • Case enclosure material—Plastic or metal
  • Case enclosure colors—White or black
  • Mounting style—Table-mount
  • Current and Voltage Ratings—13A/250VAC
  • CE marking—One has CE marking; one does not
  • RoHS compliant

Summary of the Different Country-Specific Socket Strips Sold by Interpower

Style Feature(s) Number of Sockets Mounting Style Interpower Part Numbers
Australia Circuit Breaker 6 Table 85010051
Continental Europe 5 or 9 Table 85023050

85023090
Continental Europe Circuit Breaker 5 Table 85013041
Continental Europe Rocker Switch 4, 8, or 12 Table 85003040

85003080

85003120
France/Belgium 5 Table 85032052
NEMA 5-15 Lighted Switch 4 or 6 Table 85010360

85010250
NEMA 5-15 Circuit Breaker, Rocker Switch 6 Panel or Wall 85010200
NEMA 5-15 Circuit Breaker, Lighted Rocker Switch 6 Rack 85010221
NEMA 6-15 Rocker Switch 4 Table with Clips 85010231
United Kingdom 4 Table 85010322
United Kingdom 5 Table 85031054

For more details, see More Information on Socket Strips.
